Ezviz S10 4MP Smart Video Calling Camera
PACKAGE:
1 x S10 Camera
1 x Power Adapter
1 x Power Cable
2 x Regulatory Information
1 x Quick Start Guide
FEATURES:

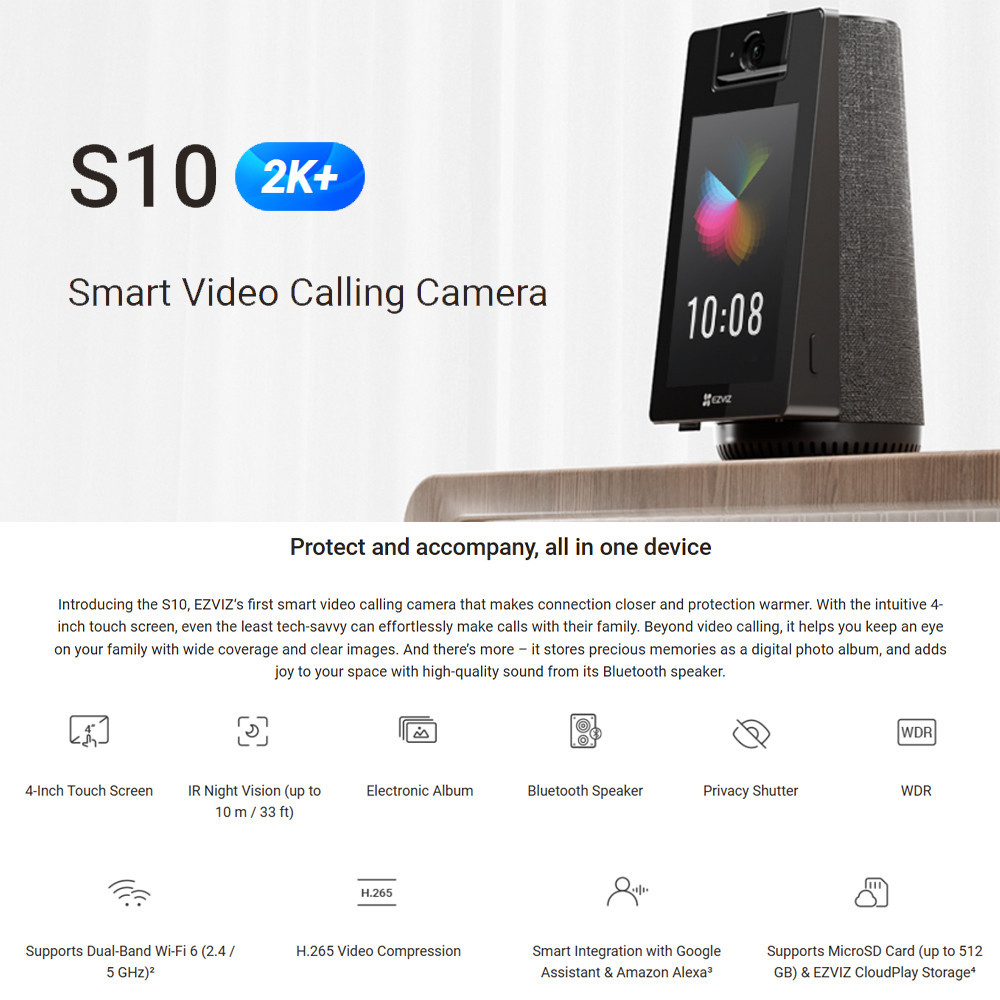

Protect and accompany, all in one device
Introducing the S10, EZVIZ‘s first smart video calling camera that makes connection closer and protection warmer. With the intuitive 4-inch touch screen, even the least tech-savvy can effortlessly make calls with their family. Beyond video calling, it helps you keep an eye on your family with wide coverage and clear images. And there’s more – it stores precious memories as a digital photo album, and adds joy to your space with high-quality sound from its Bluetooth speaker.

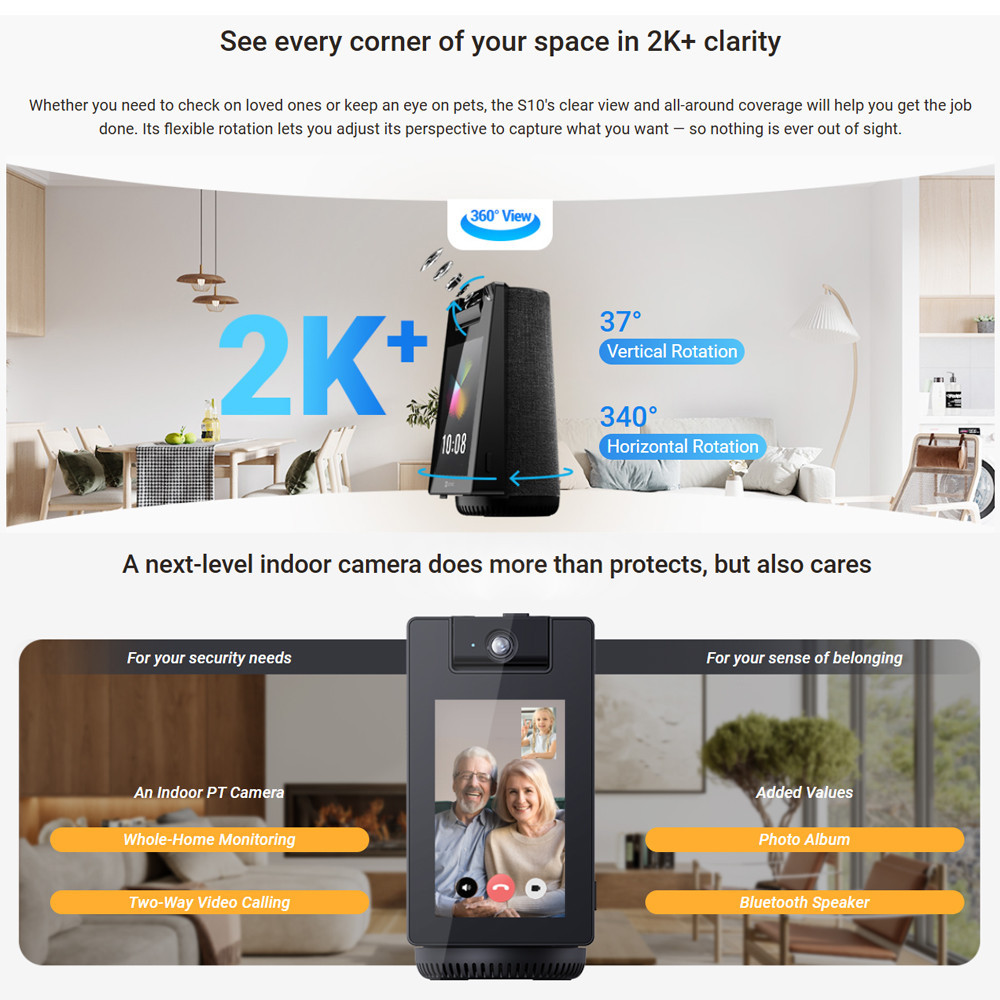

See every corner of your space in 2K+ clarity
Whether you need to check on loved ones or keep an eye on pets, the S10's clear view and all-around coverage will help you get the job done. Its flexible rotation lets you adjust its perspective to capture what you want — so nothing is ever out of sight.

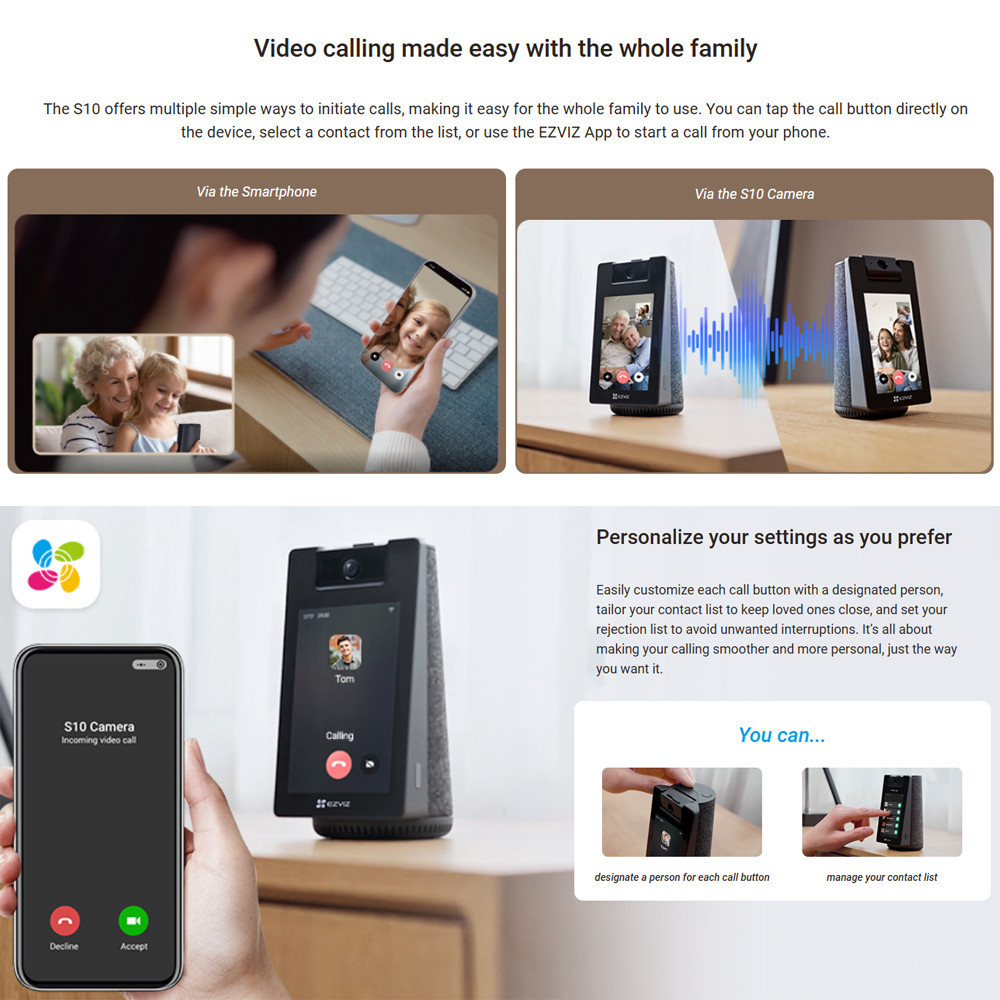

Video calling made easy with the whole family
The S10 offers multiple simple ways to initiate calls, making it easy for the whole family to use. You can tap the call button directly on the device, select a contact from the list, or use the EZVIZ App to start a call from your phone.
Personalize your settings as you prefer
Easily customize each call button with a designated person, tailor your contact list to keep loved ones close, and set your rejection list to avoid unwanted interruptions. It’s all about making your calling smoother and more personal, just the way you want it.

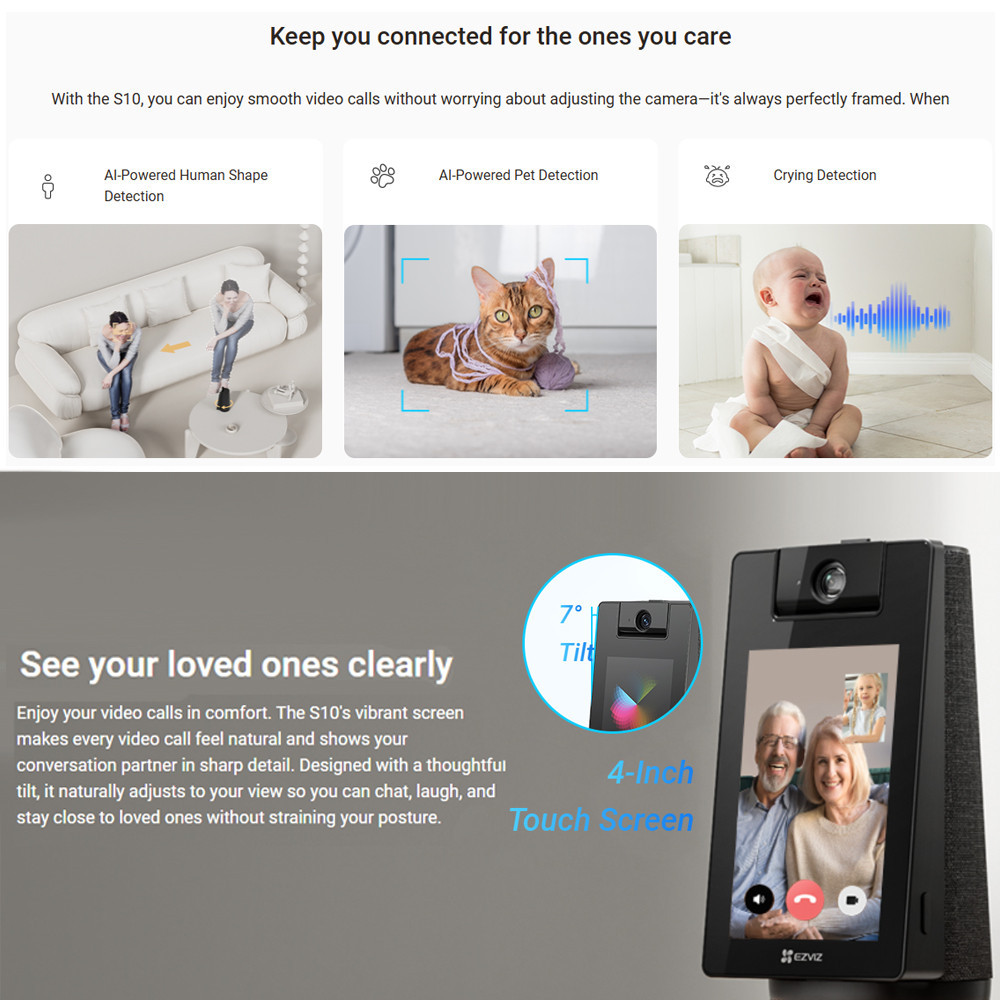

Keep you connected for the ones you care
With the S10, you can enjoy smooth video calls without worrying about adjusting the camera—it's always perfectly framed. When AI-Powered Human Shape Detection, AI-Powered Pet Detection & Crying Detection
See your loved ones clearly
Enjoy your video calls in comfort. The S10's vibrant screen makes every video call feel natural and shows your conversation partner in sharp detail. Designed with a thoughtful tilt, it naturally adjusts to your view so you can chat, laugh, and stay close to loved ones without straining your posture.

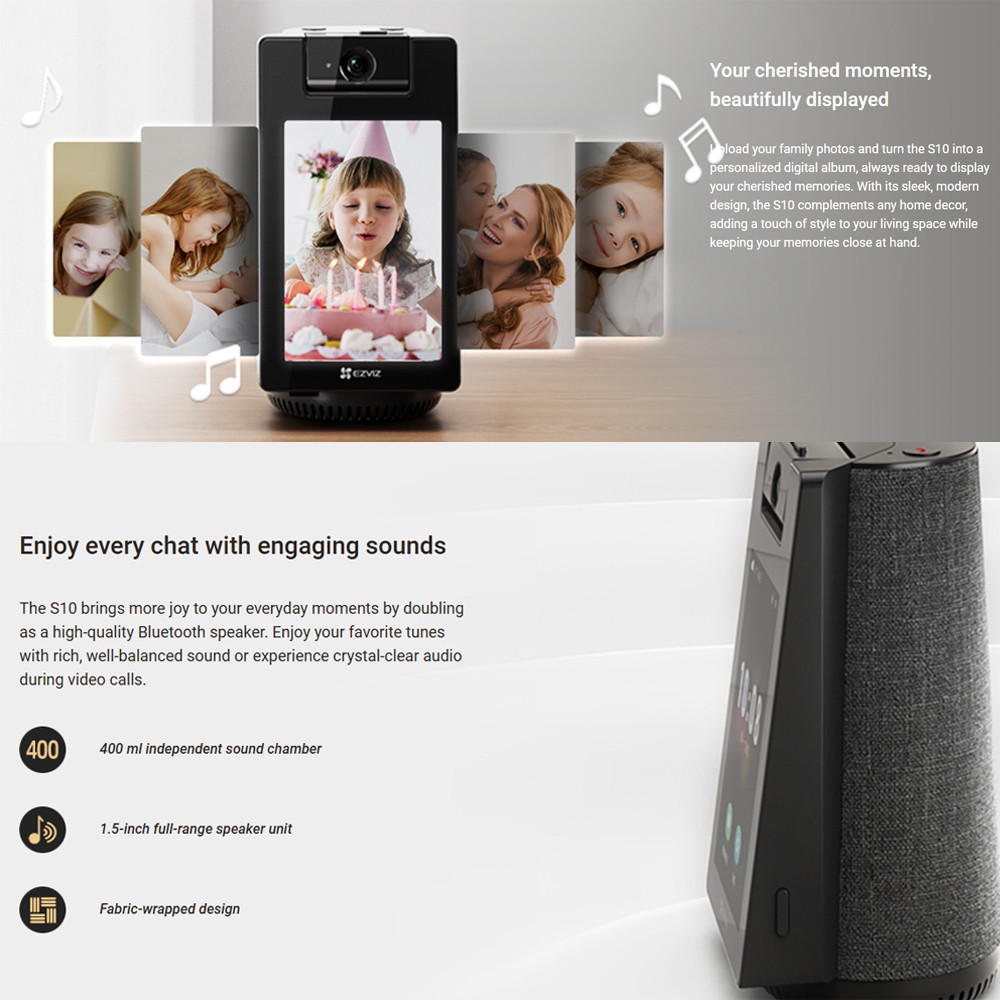

Your cherished moments, beautifully displayed
Upload your family photos and turn the S10 into a personalized digital album, always ready to display your cherished memories. With its sleek, modern design, the S10 complements any home decor, adding a touch of style to your living space while keeping your memories close at hand.
Enjoy every chat with engaging sounds
The S10 brings more joy to your everyday moments by doubling as a high-quality Bluetooth speaker. Enjoy your favorite tunes with rich, well-balanced sound or experience crystal-clear audio during video calls.
SPECIFICATIONS:
Brand: Ezviz
Model: S10
Image Sensor: 4mm@F1.6 Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm
View Angle: 100°(Diagonal), 84° (Horizontal), 46°(Vertical)
PT Angle: 0-340° Horizontal, 37° Vertical
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
Privacy Manual privacy masking
Screen: 4-inch touch screen (480 × 800)
Screen Tilt Angle: 7° tilt angle vertically
Audio Capture: 2-microphone array
Speaker: 3W
Max. Resolution: 2K+(1504 × 2672)
Frame Rate: Self-adaptive during network transmission
Video Compression: H.264 / H.265
Video Bit Rate: Adaptive bit rate
Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Frequency Range: 2.4G: 2400~2483.5MHz / 5G: 5150MHz-5350MHz; 5470MHz-5725MHz
Channel Bandwidth: Supports 2.4G 20MHz, 5G 20/40/80MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b:11M, 11g: 54M, 11n:MCS7, 11a:54M, 11ac:MCS9, 11ax:MCS11
Output Power (EIRP): 2400MHz-2483.5: ≤20dBm (EIRP);, 150MHz-5350MHz: ≤23dBm (EIRP);, 470MHz-5725MHz: ≤30dBm (EIRP)
Antenna Gain: 2.4G: 3.1dBi, 5G: 4.2dBi
Smart Alarm: PIR motion detection, AI-powered human shape detection , AI-powered pet detection , Loud noise detection
Wi-Fi Pairing: Bluetooth paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Storage: Supports microSD card (max. 512 GB)
Power: Type-C
Wired Network: No
Operating Conditions, -10°C to 40°C (14°F to 104°F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V / 2A
Power Consumption: Max. 8 W
IR Range: Max. 10 meters (32.8ft)

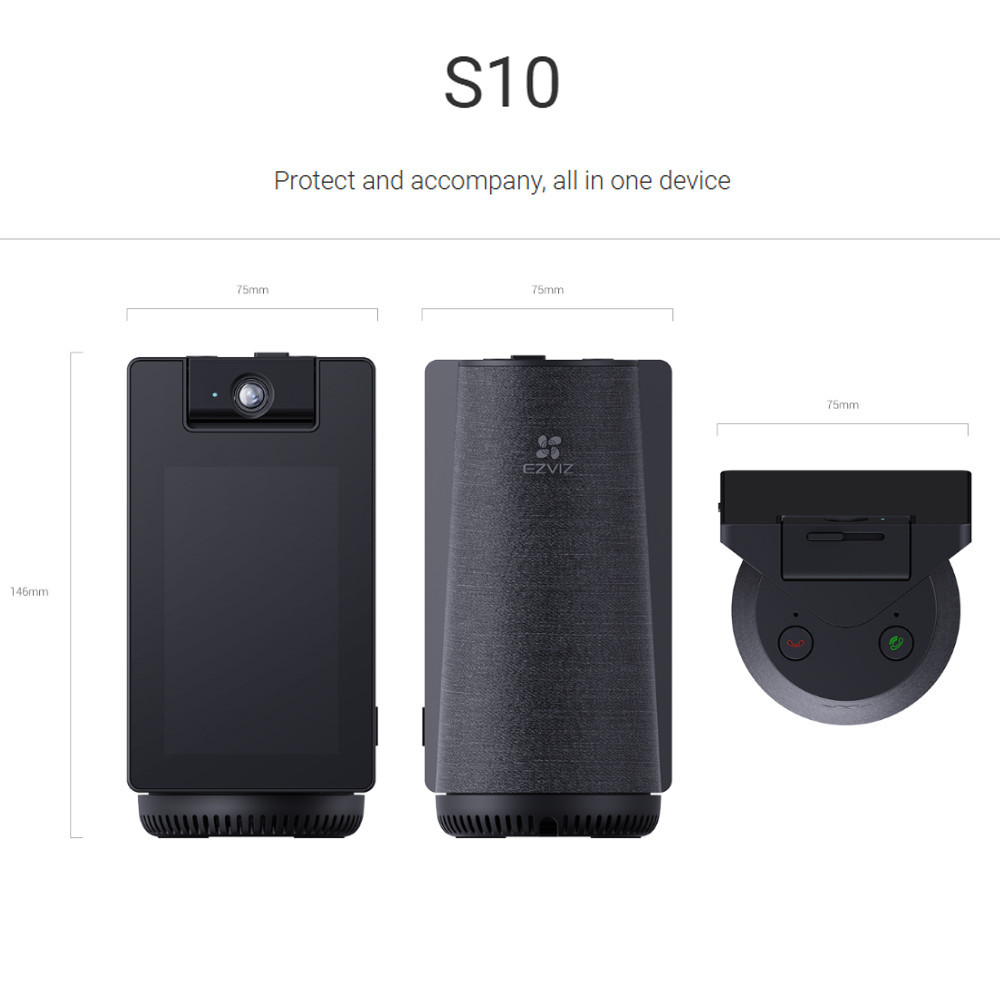

Dimensions: 75 × 75 × 146 mm (2.9 × 2.9 × 5.7 inch)
Packaging Dimensions: 160 × 98 × 172 mm (6.3 × 3.8 × 6.7 inch)
Net Weight: 403 g (14.2 oz)
Certifications: CE / REACH / WEEE / RoHS
