SPECIFICATIONS
HDMI Splitter 1 in 2 Outputs

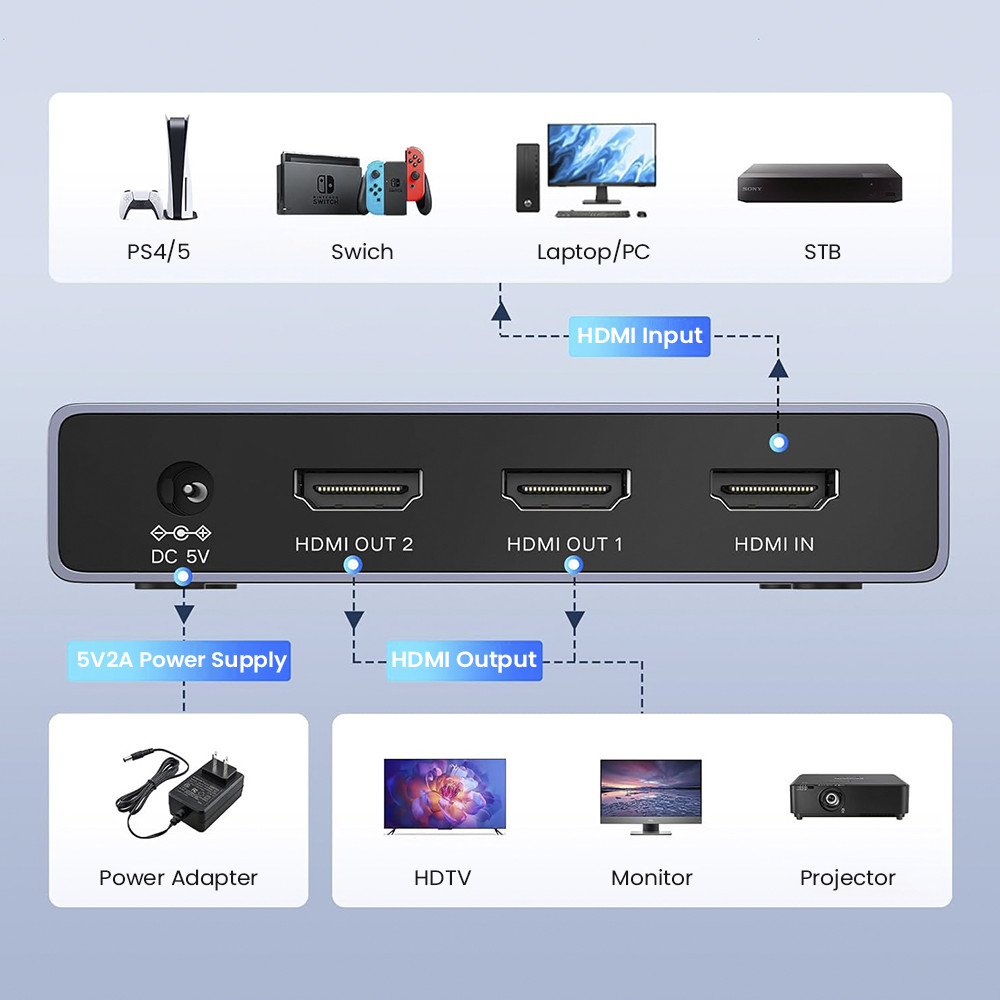

The UGREEN HDMI Splitter is a high-performance device that splits one HDMI signal into two outputs, allowing you to display the content on two screens simultaneously. Whether you’re using a PC, TV box, Blu-ray player, or gaming console, this splitter provides a stable and lag-free dual-screen experience. Ideal for home entertainment, office presentations, gaming, and multi-screen setups in schools or businesses.
8K@60Hz High Resolution & HDR Support
Supports 8K@60Hz ultra-high-definition resolution, delivering crisp, vibrant visuals on two screens at the same time. HDR (High Dynamic Range) technology prevents black crush and overexposure, ensuring more realistic colors and enhanced details for an immersive viewing experience.

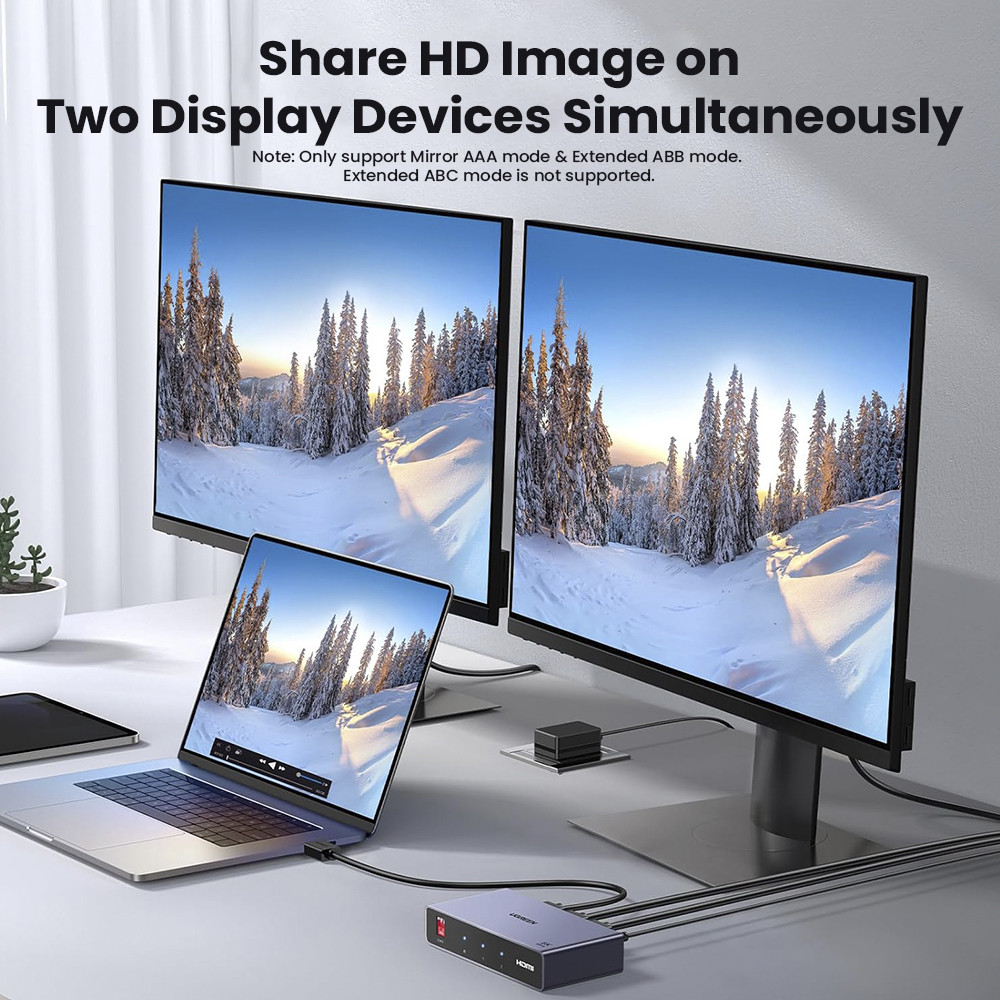

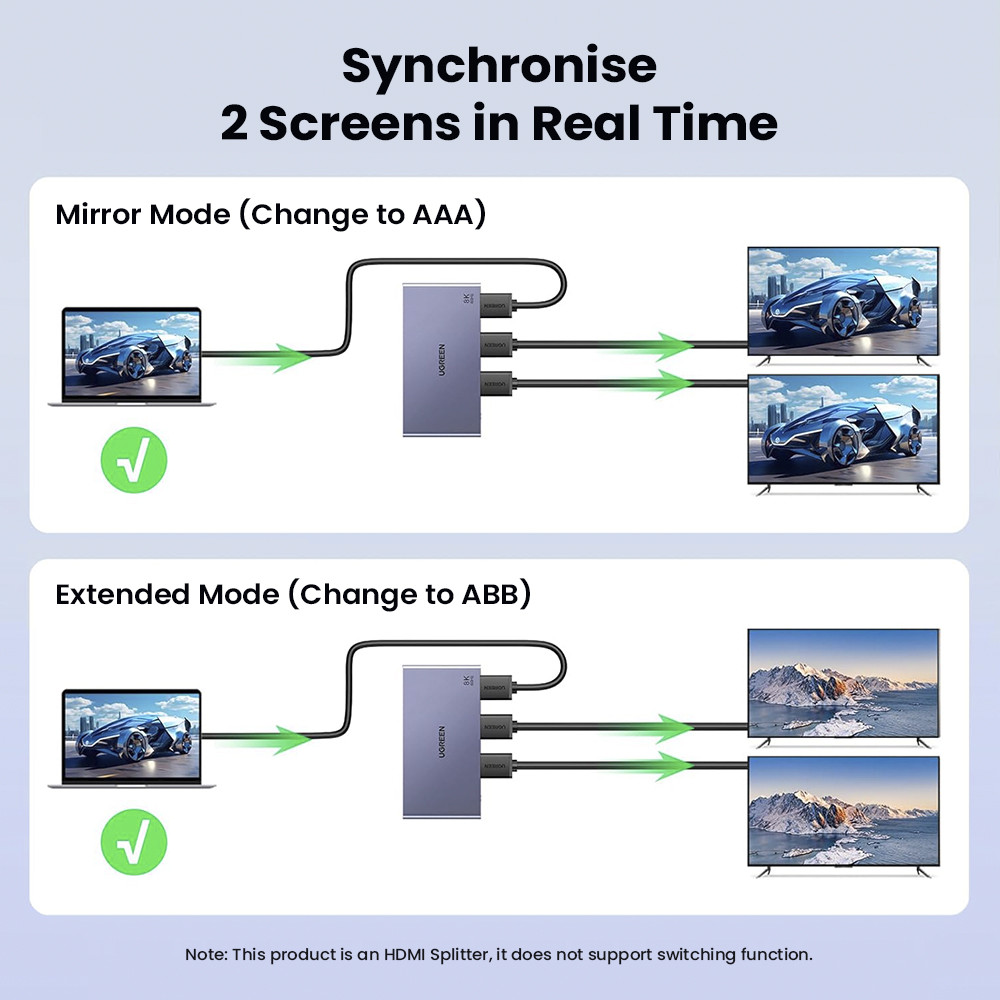

Mirror & Extended Display Modes
Support Mirror Mode (AAA) – Displays the same content on both screens.
Support Extended Mode (ABB only) – Allows extension but with identical content on both external displays. (ABC mode not supported.) Applicable for both Windows and MacOS.

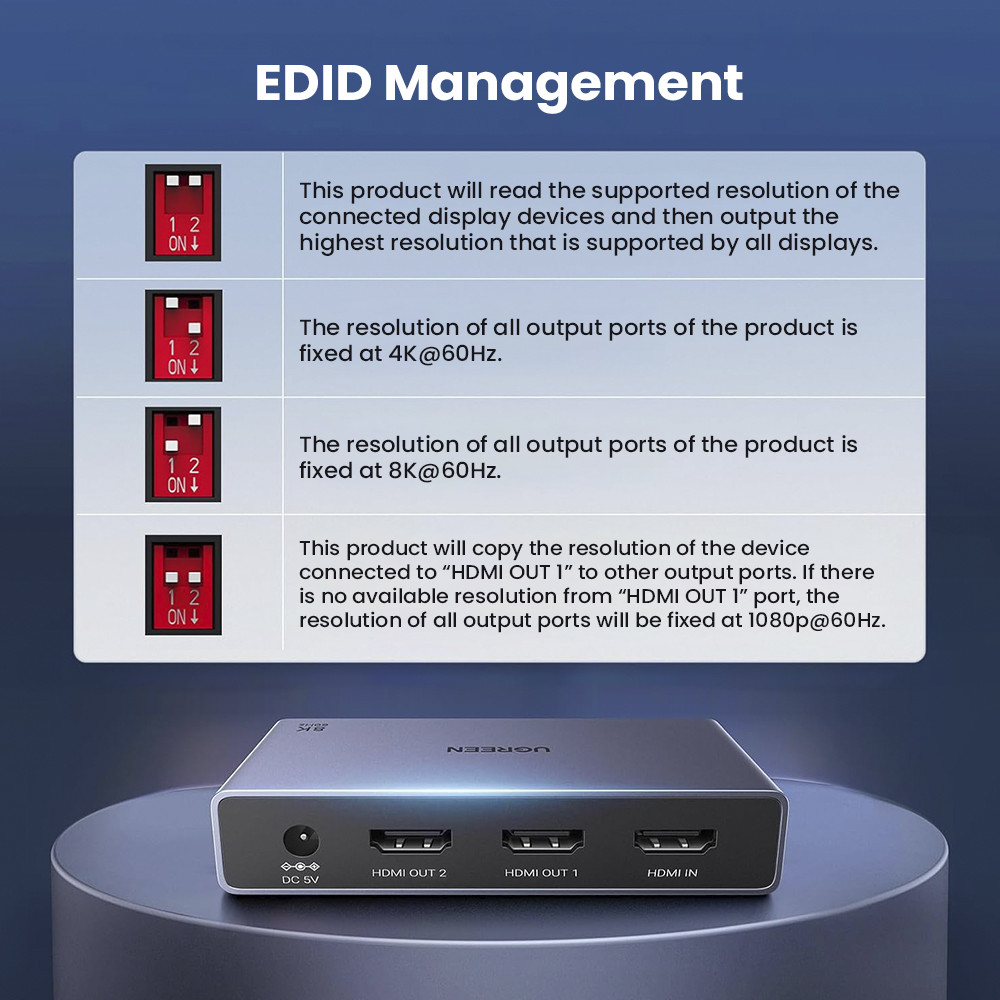

EDID Control Switch
Equipped with an EDID mode selector, supporting four preset EDID options. You can choose between automatic EDID detection or fixed resolution mode, ensuring stable video transmission and optimal compatibility with different devices.
Enjoy Home Theater with High-Quality Sound
Supports a variety of high-fidelity audio formats, including LPCM, Dolby, DD+, TrueHD, DTS, DTS-HD HRA, DTS-HD Master, DSD, and Dolby Atmos. Experience theater quality surround sound at home.
Stable Signal Transmission
Built with high-quality materials and an intelligent chipset, the CM694 ensures high-fidelity signal transmission with minimal interference and no latency, maintaining clear and stable video output.
Plug & Play – No Drivers Required
Designed for easy use, the CM694 HDMI splitter requires no additional drivers or software—simply plug it in and start using it immediately. Perfect for users who need a hassle-free multi-screen solution.
Mac & Windows Compatibility
Compatible with MacOS, Windows and Linux devices, ensuring seamless operation across different systems.
Wide Compatibility
Backward compatible with 8K@60Hz, 8K@30Hz, 4K@120Hz, 4K@60Hz, 4K@30Hz, and 1080p@60Hz. Compatible with a wide range of devices, including: Laptops, PC, PS5, PS4, PS3, Xbox One X/Series X, TV boxes, DVD player. HDMI-equipped displays such as TVs, DLP, LCD monitors, and projectors
Specifications:
Input: 1x HDMI
Output: 2x HDMI
Resolution: Up to 8K@60Hz
HDCP Version: HDCP 2.3, backward compatible
Color Depth: 24-bit/30-bit/36-bit
Pixel Formats: RGB/YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0
Audio Formats: Supports LPCM/DTS/DSD, 2.0/2.1/5.1/7.1 channels
Audio Sampling Rate: 24-bit/192kHz Max
Function Supported: Supports 3D visual effects/HDR10/HDR10+/VRR/EDID Management
Power Supply Input: DC5.5mm 5.0V-2.0A Max
Compatible Systems: Windows/macOS/Linux
Dimensions: L100 × W51 × H21 mm (L3.9 × W2.0 × H0.8 inches)
Note: The data are measured by UGREEN Lab but may vary based on specific circumstances.
Package Contents
1 x HDMI Splitter (1 In 2 Out)
1 x DC5.5mm 5V/2A Power Adapter (1.5m)
1 x User Manual
UG-CM694-45766
