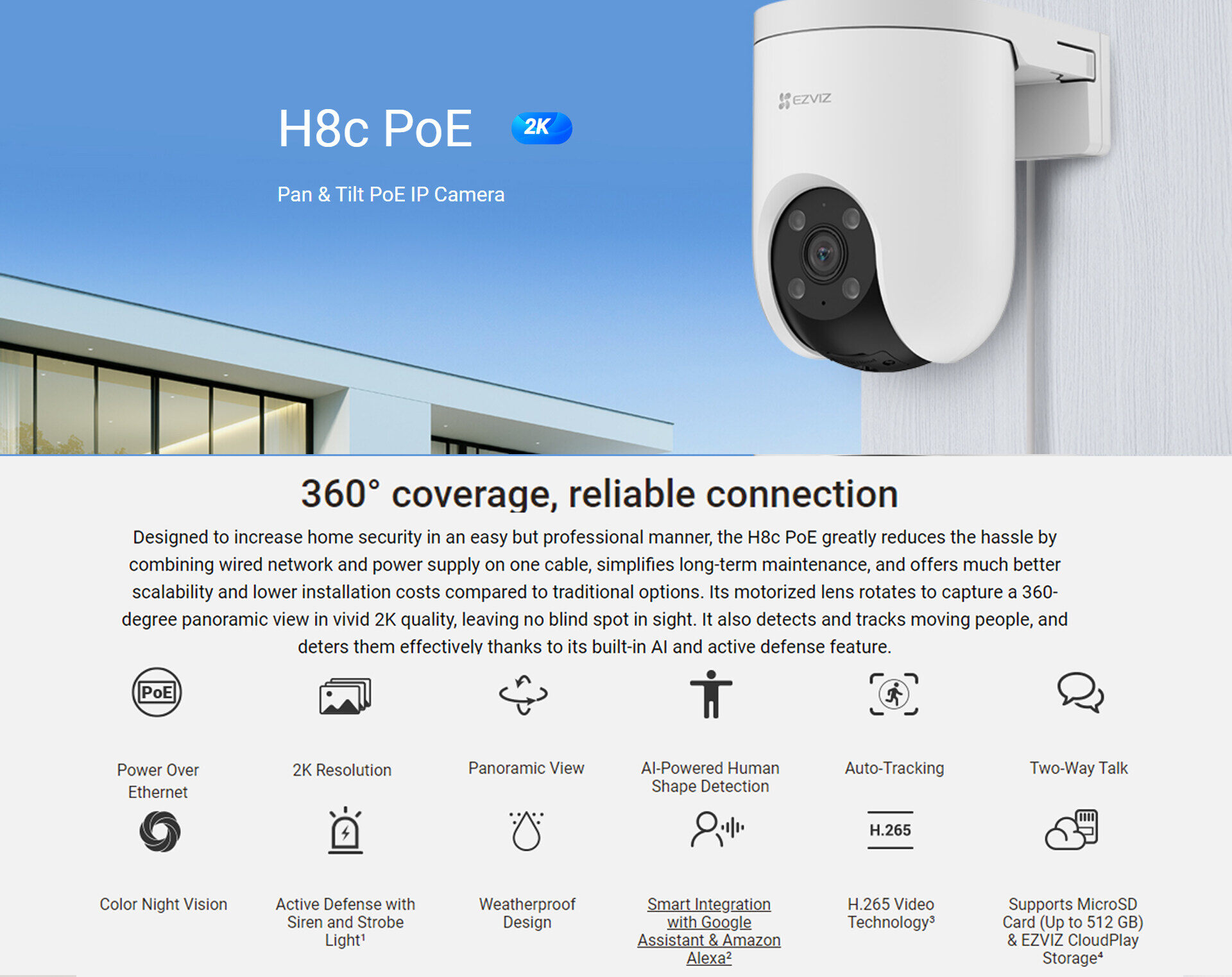

H8c PoE
360° coverage, reliable connection

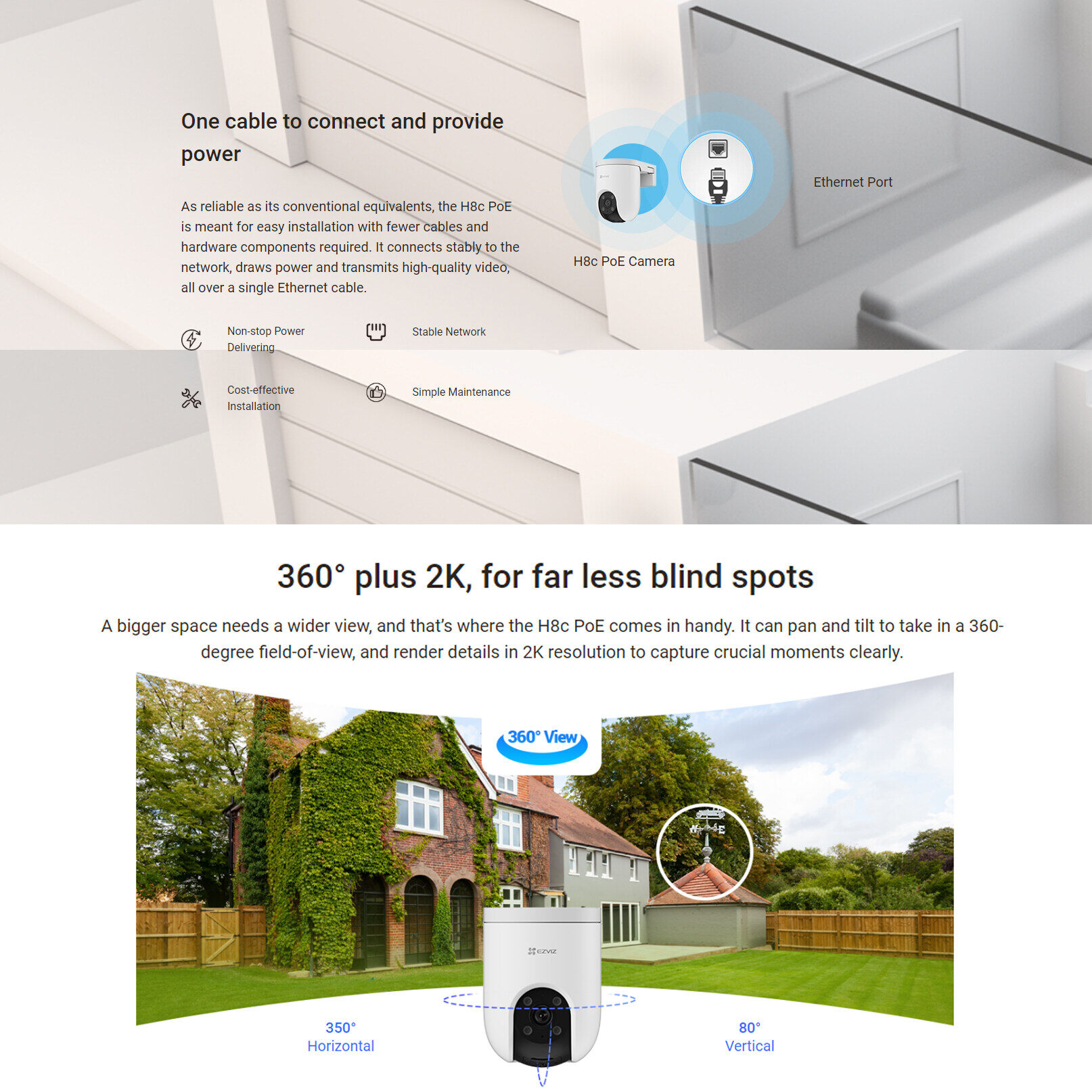

Designed to increase home security in an easy but professional manner, the H8c PoE greatly reduces the hassle by combining wired network and power supply on one cable, simplifies long-term maintenance, and offers much better scalability and lower installation costs compared to traditional options. Its motorized lens rotates to capture a 360-degree panoramic view in vivid 2K quality, leaving no blind spot in sight. It also detects and tracks moving people, and deters them effectively thanks to its built-in AI and active defense feature.
2K
Specifications
|
Specifications |
|
|
Model |
CS-H8c PoE (2K) |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
4mm@ F1.6, viewing angle: 49° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal) |
|
PT Angle |
Pan: 350°, Tilt: 80° |
|
Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
|
Lens Mount |
M12 |
|
Day & Night |
IR-cut filter with auto switch |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Black & White Night |
30m / 98ft |
|
Video & Audio |
|
|
Max Resolution |
2304 × 1296 |
|
Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
H.265 Type |
Main Profile |
|
Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Network |
|
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
|
Functions |
|
|
Smart Alarm |
AI-Powered Human Shape Detection |
|

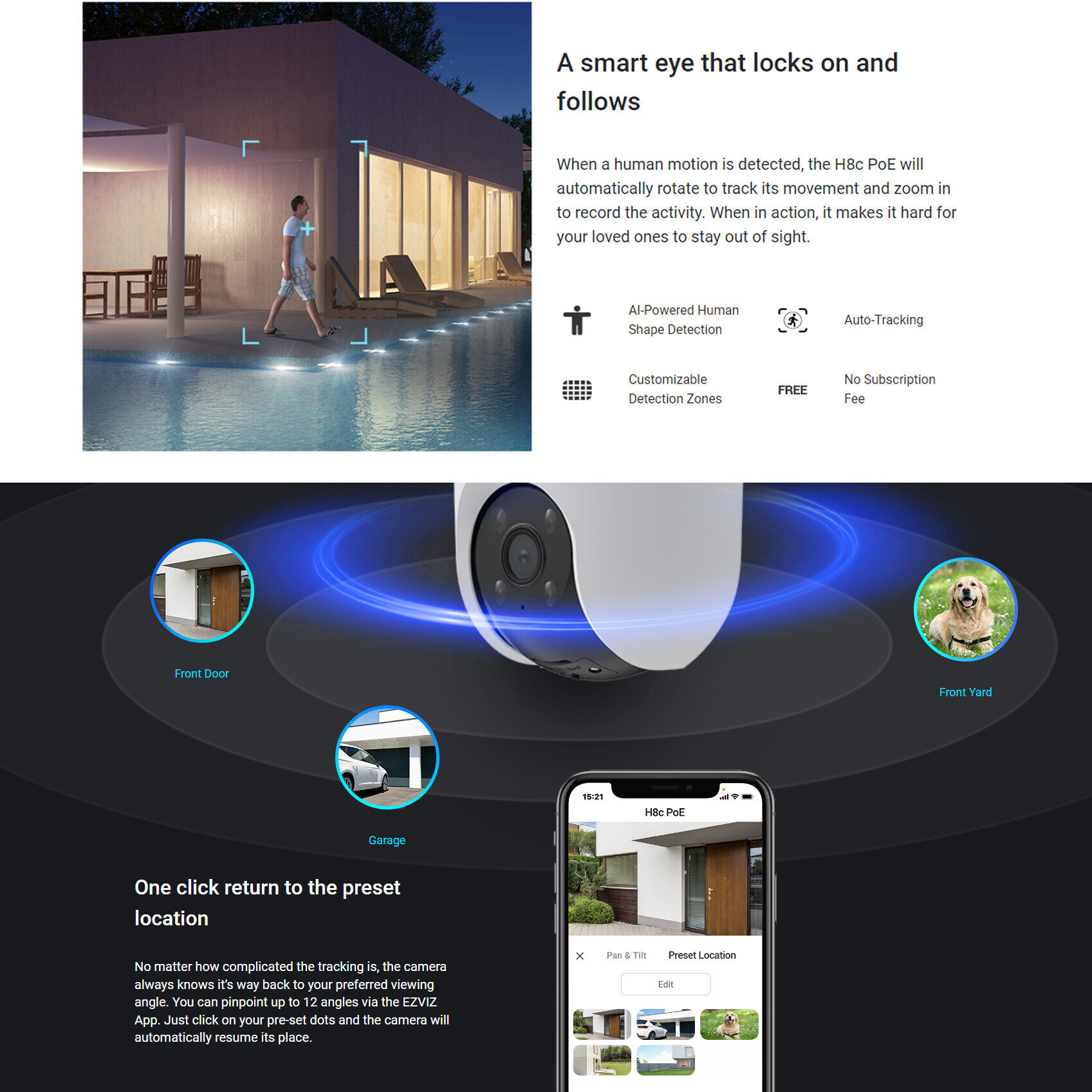

Auto Tracking |
Supports |
|
Customized Alert Area |
Supports |
|
Two-way Talk |
Supports |
|
Preset Locations |
Supports |
|
General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports MicroSD Card (Up to 512 GB) |
|
Cloud Storage |
EZVIZ CloudPlay storage |
|
General |
|
|
Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
|
IP Grade |
Weatherproof Design |
|
Power Supply |
DC 12V/1A, Supports PoE power supply |
|
Power Consumption |
MAX. 12W |
|
Dimensions |
100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch) |
|
Packaging Dimensions |
140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch) |
|
Weight |
Net Weight: 525g With Package: 745g For EU Standard Version |
|
In the box |
|
|
In the box |
- H8c PoE (2K) Camera |
|
- Drill Template |
|
|
- Screw Kit |
|
|
- Waterproof Kit |
|
|
- Regulatory Information |
|
|
- Quick Start Guide |
|
|
Certifications |
|
|
Certifications |
CE / UL / RoHS / WEEE / REACH |
